Jergens Tooling Columns Facilitate Quick Setup Changes and Customization for Enhanced Machining Efficiency!

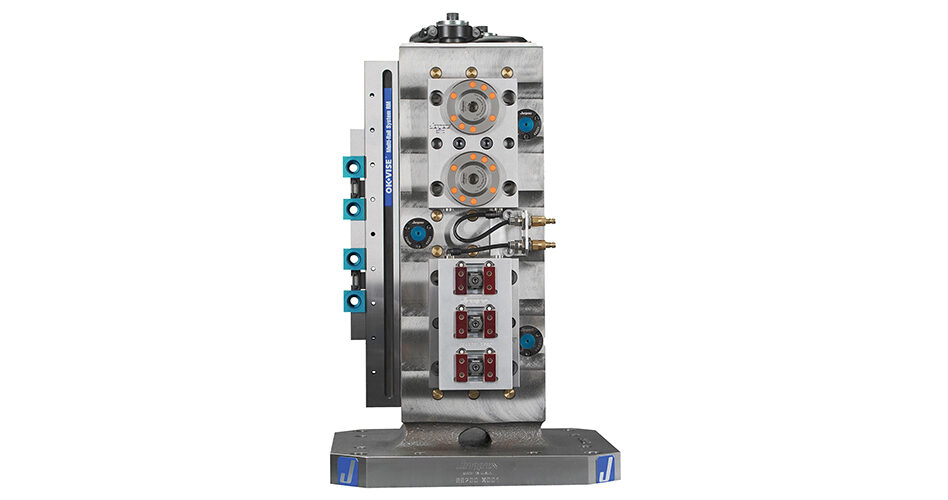

Jergens Inc. offers a range of advanced tooling columns designed to simplify and accelerate setup changes, boosting machining efficiency and operational flexibility. The company’s cast iron tooling columns feature ball lock and quick locking system (QLS) top tool mounting systems, which are ideal for horizontal machining applications. These versatile tooling columns are built for both high-volume production runs and smaller, more intricate operations, providing manufacturers with the flexibility they need to meet diverse production demands.

Jergens’ tooling columns are equipped with two distinct mounting systems that allow for rapid tool changes, reducing downtime and improving operational efficiency. The ball lock system is especially suited for larger production vises and plate work, providing enhanced capability for those operations that require substantial clamping force. On the other hand, the QLS system is designed for smaller solutions, such as the OK Vise and Jergens’ 5CV self-centering vises, making it an excellent choice for precision machining with smaller workpieces.

The ability to switch between both mounting systems ensures a high level of adaptability for different types of machining tasks, facilitating quick and efficient setup changes. This flexibility is particularly valuable in high-mix, low-volume environments where frequent changes are needed, as well as in high-volume production where minimizing setup time can lead to significant productivity gains.

A standout feature of Jergens’ tooling columns is their adaptability. The columns are not only available in a range of standard styles—including square, cross, and rectangular—but they can also be customized to meet the specific needs of a given application. The square and cross styles are particularly well-suited for high-density, multi-part fixtures or applications that require multiple operations to be incorporated into a single column. The cross style is designed to provide better spindle access near the column, reducing the need for extra-long tools and improving overall machining efficiency.

For applications involving larger workpieces, the rectangular columns offer a larger upright face, providing more surface area for secure clamping and increased stability. This design flexibility ensures that Jergens’ tooling columns can be tailored to fit a wide range of horizontal machining applications, from intricate precision tasks to heavy-duty production runs.

In addition to their various column styles, Jergens tooling columns can be integrated into custom design and build projects. Commonly used patterns, such as tapped grid and bushed for modular fixturing, can be incorporated to create tailored setups. Furthermore, the inclusion of ball lock receiver bushings or zero point system (ZPS) modules offers even more versatility for quick change capabilities, making it easy to adapt to different production needs with minimal effort.

Jergens’ tooling columns are constructed from single-piece, stress-relieved, class-40 cast iron, ensuring maximum rigidity and durability in even the most demanding machining applications. The strong, stable construction of these columns helps maintain precision and reduce vibration, which is critical for high-quality machining. This robust design also contributes to the longevity of the tooling columns, making them a reliable investment for manufacturers seeking consistent performance over time.

By providing a solid and stable foundation for workholding, Jergens’ tooling columns enable manufacturers to maximize their horizontal machining capabilities. Whether used in complex, multi-part fixtures or for larger workpieces, these tooling columns improve the flexibility and efficiency of machining operations. Their adaptability and ease of integration into custom setups make them an invaluable tool for businesses looking to streamline their machining processes, reduce setup times, and increase overall productivity.

Jergens’ tooling columns are a game-changer for manufacturers looking to enhance their machining efficiency. With customizable designs, fast and easy setup changes, and a strong, reliable build, these columns offer a comprehensive solution to improve horizontal machining operations. By integrating advanced features such as ball lock and QLS mounting systems, Jergens delivers tooling columns that provide both versatility and precision, making them an essential component of modern manufacturing setups. Whether for high-density fixtures, large workpieces, or rapid tool changes, Jergens’ tooling columns are designed to meet the diverse needs of today’s fast-paced manufacturing environments.
