HSD6-III by winbro
Multi-Axis, Single or Multi-Hole High-Speed EDM Drilling System.

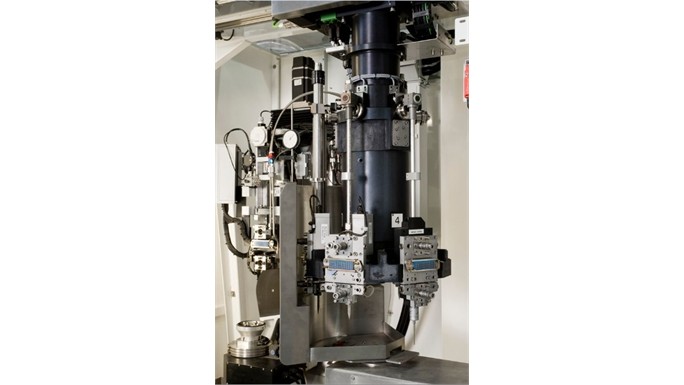

The HSD6 III High-Speed EDM System offers industry-leading performance whilst maintaining stringent aero and IGT metallurgical requirements. This machining system can accommodate components dimensions of 225mm x 225mm x 225mm (8.85 x 8.85 x 8.85 inches) and with a payload of 10kg (22lbs).
HSD6-III offers a robust design combined with multi-axis flexibility, a useful work envelope and a choice of tooling.
Applications

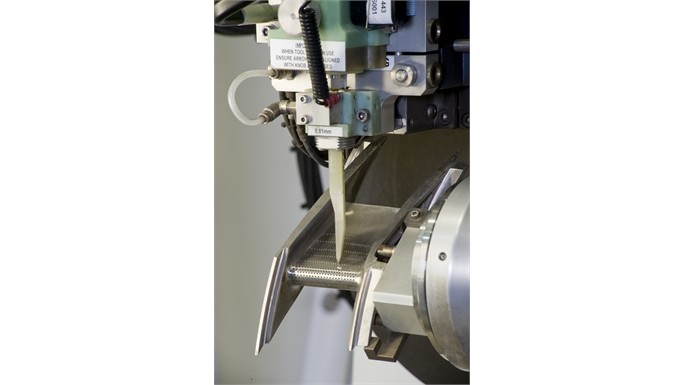

The acclaimed HSD6 machine in its latest MK-III incarnation has been specially developed for machining cooling holes and slots on critical components such as Aero and IGT turbine blades, vanes, segments and other components of a similar size.
- Round holes/Shaped holes (oval)
- Seal slots
- 2D & 3D diffusers
Technology information
|
Strokes: |
|
|
Linear X |
200mm (7.87 inches) |
|
Linear Y |
200mm (7.87 inches) |
|
Linear Z |
250mm (9.84 inches) |
|
Rotary A |
+/- 185° |
|
Rotary B |
135° + 100° |
|
Rotary C |
+/- 8° |
|
EDM axis: |
100mm (3.94 inches) |
|
Accuracy: |
|
|
Linear |
0.010mm (0.00039 inches) |
|
Rotary |
20 arc sec |
|
Repeatability: |
|
|
Linear |
0.008mm (0.00032 inches) |
|
Rotary |
+/- 15 arc sec |
