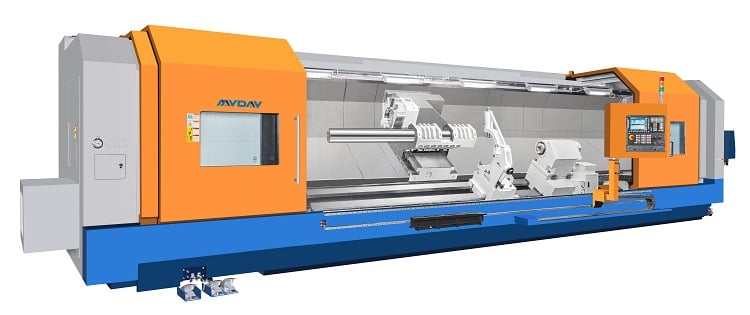

TURNING CENTER -TF21 & TF21C
Thursday 27 March 2025
Supplier Information
MYDAY
Visit Website
Detailed Specification
| MYDAY MODEL | TF21 | TF21C | |
|---|---|---|---|
| SWING OVER BED Unit mm | 1000 | ||
| OVER CROSS SLIDE mm | 750 | ||
| MAX. TURNING DIA. mm | 900 | 830 | |
| MAX.WORK LENGTH mm | 1000/1500/2000/3000/4000/5000 920/1420/1920/2920/3920/4920(MC) | ||
| CHUCK SIZE inch | 21″ | ||
| DRAW TUBE DIA. mm | ø140(opt : ø160、ø180) | ||
| SPINDLE SPEED RANGE RPM | 1800(opt : 1000) | ||
| SPINDLE NOSE ASA | A2-15 | ||
| SPINDLE BORE mm | ø160(opt : ø180、ø200) | ||
| FRONT BEARING DIA. mm | ø220(opt : ø240、ø260) | ||
| SPINDLE TAPPER | 1/20 | ||
| MILLING SPEED RPM | – | 3000 | |
| X-AXIS TRAVEL mm | 470+45 | ||
| Z-AXIS TRAVEL mm | 1080/1580/2080/3080/4080/5080 | ||
| Controller | FANUC 0i-TF3 / SIEMENS 828D | ||
| Spindle Motor | 37 Kw / 28 Kw | ||
| X-AXIS RAPD TRAVERS m/min | 12m/min | ||
| Z-AXIS RAPD TRAVERSRSE m/min | 10m/min 8m/min(Z≧2000) | ||
| GUIDEWAY TYPE | Box way/30∘ | ||
| NUMBERS OF TOOL STATION | 12T | 12T | |
| O.D. TOOL mm | □32 | □32 | |
| BORING BAR DIA. mm | ø60 | ø50 | |
| QUILL DIA. mm | ø150(opt : ø180) | ||
| QUILL TRAVEL mm | 150 | ||
| TAILSTOCK TRAVEL mm | 700/1200/1700/2700/3700/4700 | ||
| QUILL TAPER | MT#6 | ||
| POWER SUPPLY kva | 80 | ||
| COOLANT TANK CAPACITY Liter | 400 | ||
| COOLANT FLOW L/mm | 60 | ||
| MACHINE HEIGHT mm(H) | 2760 | ||
| FLOOR SPACE mm(L) | 5180/5680/6180/7180/8180/9180 | ||
| FLOOR SPACE mm(W) | 3100 | ||
| NET WEIGHT kg | 11800/12300/12900/14000/15100/16800 | ||
