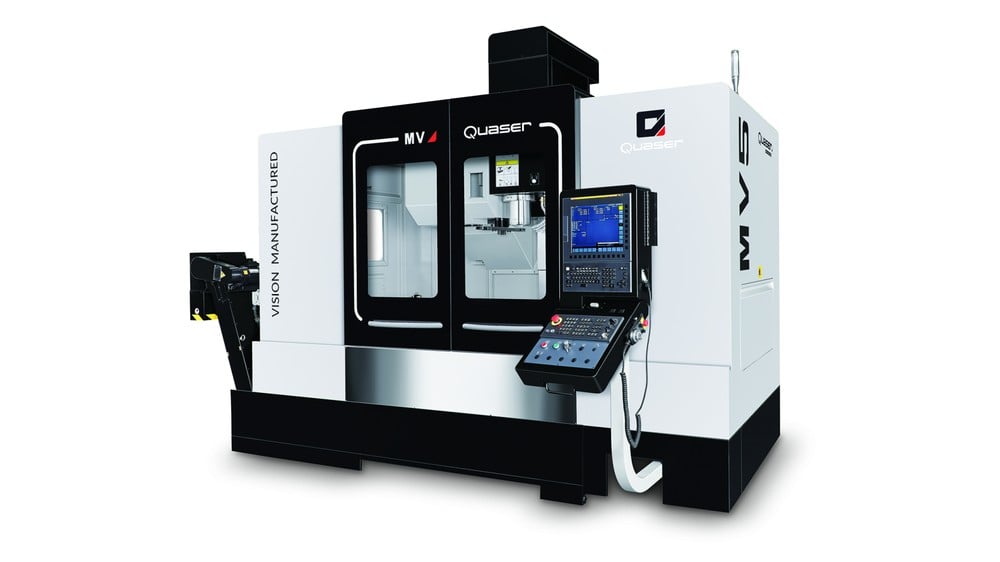

MV5 by quaser
This latest generation enhances the proven reliability and accuracy of Quaser Vertical machining Centres and boasts a modern machine package for today’s market.
New spindle configurations, ergonomic design and thermal characteristics bring this machine model to the forefront of technology for VMC’s cutting a wide range of materials and employing the most modern cutting techniques.
Quaser machines are built on accuracy and stability, this new model takes that to the next level.
Advantages of the MV5 Series include:
-
Travel X / Y / Z: 1,524 / 700 / 610 (mm)
-
Table size: 1,700 x 700 (mm)
Technology information
|
Technical Data |
Unit |
MV5 |
|||||||||
|
Spindle code |
|
12C |
15C |
20C(2) |
18M |
24M |
7.5B |
15C(2) |
|||
|
Main Spindle: |
|||||||||||
|
Spindle Taper |
Taper |
40 |
50 |
||||||||
|
Work Range: |
|||||||||||
|
Table size |
mm |
1,700 x 700 |
|||||||||
|
Travel X/Y/Z |
mm |
1,524 / 700 / 610(1) |
|||||||||
|
Spindle nose to table surface |
mm |
150 ~ 760(1) |
190 ~ 800(1) |
||||||||
|
Total load capacity |
kg |
1,000 |
2,000 |
||||||||
|
Feed drive: |
|||||||||||
|
Feed force X/Y/Z (N) |
F |
N |
11,519 / 11,519 / 11,519 |
||||||||
|
T |
11,310 / 11,310 / 19,897 |
– |
|||||||||
|
S |
15,708 / 15,708 / 15,708 |
– |
|||||||||
|
Rapid movement X/Y/Z |
m/min |
36 |
|||||||||
|
Acceleration X/Y/Z (N) |
F |
m/s2 |
3.5 / 3 / 4 |
3.5 / 3 / 4 |
3.5 / 3 / 4 |
3.5 / 3 / 2 |
|||||
|
T |
4 / 4 / 4 |
4 / 4 / 4 |
4 / 4 / 4 |
||||||||
|
S |
3 / 2.5 / 3 |
3.5 / 2.5 / 3 |
3 / 2.5 / 3 |
– |
|||||||
|
Dia. & pitch of the ball screw |
mm |
Ø45 / P = 12 / 12 / 12 |
|||||||||
|
Tool Changer: |
|||||||||||
|
Tool selection |
|
Random |
|||||||||
|
Magazine positions |
|
48 (std.) / 60 (opt.) |
48 (std.) / 60 (opt.) |
30 (std.) 40 (opt.) |
|||||||
|
Maximum tool diameter |
mm |
76.2 |
125 |
||||||||
|
Max. tool dia. due to neighbour pots are empty |
mm |
125 |
200 |
||||||||
|
Maximum tool length |
mm |
300 |
350 |
||||||||
|
Maximum tool weight |
kg |
7 |
15 |
||||||||
|
C to C time ISO 10791-9(sec.)-60Hz |
|
4.7±0.2 |
4.7±0.2 |
9±0.2 |
|||||||
|
Coolant System: |
|||||||||||
|
Coolant tank capacity |
litre |
600 |
|||||||||
|
Pump Capacity: |
|
||||||||||
|
– Nozzle coolant |
Litre |
60L / min. 3.5 bar |
|||||||||
|
– Coolant through spindle |
Litre |
25L / min. 20 bar |
|||||||||
|
– Wash down |
Litre |
60L / min. 4.5 bar |
|||||||||
|
Machine Size: |
|||||||||||
|
Height |
mm |
3,400 |
3,800 |
3,400 |
|||||||
|
Floor space W x D |
30 ATC |
mm |
– |
4,555 x 3,930 |
|||||||
|
40 ATC |
– |
4,555 x 4,480 |
|||||||||
|
48 ATC |
4,555 x 3,780 |
– |
|||||||||
|
60 ATC |
4,555 x 4,080 |
– |
|||||||||
|
Weight |
Kg |
10,100 – 11,000 |
11,000 – 12,000 |
||||||||
|
Connections: |
|||||||||||
|
Main power |
|
220~230V / 50~60 Hz, 380~415V/50~60Hz |
|||||||||
|
Power consumption |
KVA |
30(F) 35(T)(S) |
35(F)(S) 40(T) |
35 (F) |
40(F) 50(T)(S) |
40(F) 45(T)(S) |
45(F)
|
||||
