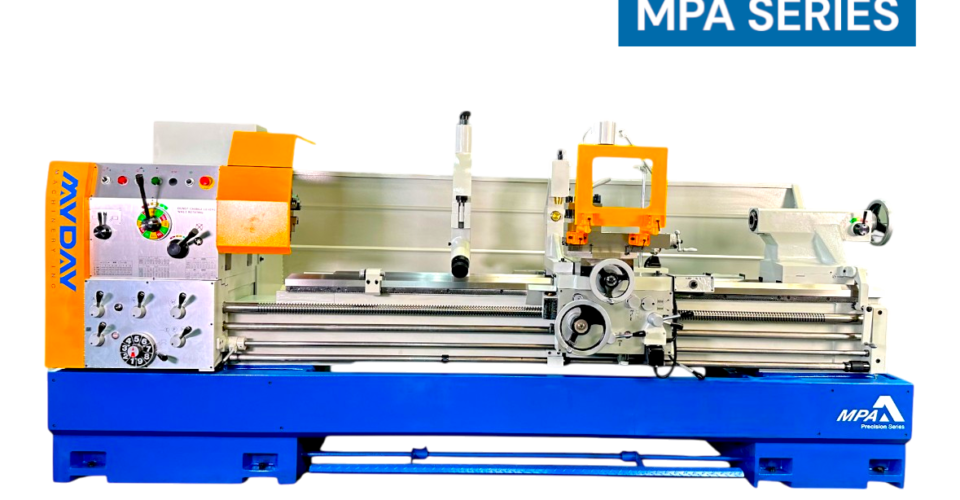

Heavy Duty Precision Lathe (16” Bed)
Monday 24 March 2025
Supplier Information
MYDAY
Visit Website
Detailed Specification
Heavy Duty Precision Lathe is a very popular product line in metal industry. The spindle motor power in the series is transmitted to the spindle through pulley, belt and 12-step gear sets. It could perform heavy duty machining with high speed and high rigidity.
| Description \ Model | MPA600 | MPA670 | MPA770 |
|---|---|---|---|
| Center height | 300 mm | 335 mm | 385 mm |
| Swing over bed | 600 mm (24”) | 670 mm (26”) | 770 mm (30”) |
| Swing over cross slide | 390 mm | 460 mm | 560 mm |
| Swing over gap | 820 mm | 890 mm | 990 mm |
| Width of gap | 450 mm | ||
| Width of bed | 400 mm (16”) | ||
| Distance between centers | 1500 (60”), 2000 (80”), 3000 (120”), 4000mm (160”) | ||
| Spindle bore | Ø80 mm (3”) / Ø104 mm (4”) | ||
| Spindle nose | A2-8, D1-8 (3”) / A2-11, D1-11 (4”) | ||
| Spindle speeds (12 Steps) | 17-1200 / 15-1000 rpm | ||
| Tailstock quill diameter | Ø80 mm | ||
| Taper of center | MT#5 | ||
| Quill travel | 230 mm | ||
| Tool size | 25 x 25 mm | ||
| Compound rest travel | 230 mm | ||
| Cross slide travel | 300 mm | 385 mm | |
| Cross feeds | 0.025-0.35 mm (36 Kinds) | ||
| Longitudinal feeds | 0.05-0.7 mm (36 Kinds) | ||
| Lead screw diameter | Ø45 mm | ||
| Lead screw pitch | 2TPI (inch) or 12mm (metric) | ||
| Threading range, metric | 0.8-14 mm / Pitch (65 Kinds) | ||
| Threading range, inch | 2-28 TPI (36 Kinds) | ||
| Module pitch threads | 0.5-7 M (22 Kinds) | ||
| DP. pitch threads | 4-56 P (36 Kinds) | ||
| Main spindle motor | 15 HP(Std.) | ||
| Coolant pump | 1/8 HP | ||
| 16”STANDARD ACCESSORIES | 16”OPTIONAL ACCESSORIES |
|---|---|
| Main Motor | 3-Jaw Chuck |
| Auto Lubrication System | 4-Jaw Chuck |
| Coolant System | Face Plate |
| 4-Way Tool Post | Double Chuck System |
| Leveling Bolts & Pads | Steady Rest |
| Main Spindle Sleeve | Follow Rest |
| Main Spindle Center | Rear Tool Post |
| Tailstock Center | Micro Bed Stopper |
| Meter / Inch Community Gear Box | Taper Attachment |
| Tool Box with Tools | Quick Change Tool Post |
| Independent Electrical Box | Digital Readout |
| Operation & Service Manual | Rotary Center |
| Work Light | Electrical System for CE |
| Splash guard |
