Detailed Specification

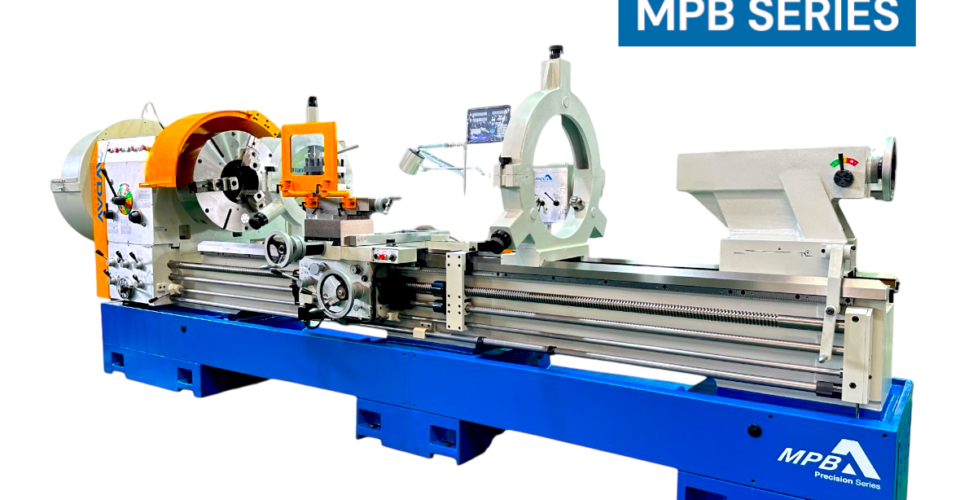

This Heavy Duty Precision Lathe is a very popular product line in metal industry.
The spindle motor power in the series is transmitted to the spindle through a pulley, belt and 12-step gear set.
It could perform heavy duty machining with high speed and high rigidity.It could perform heavy duty machining with high speed and high rigidityHeavy Duty Precision Lathe is a very popular product line in metal industry.
| Description \ Model | MPB670 | MPB770 | MPB840 |
|---|---|---|---|
| Center height | 335 mm | 385 mm | 420 mm |
| Swing over bed | 670 mm | 770 mm | 840 mm |
| Swing over cross slide | 460 mm | 560 mm | 630 mm |
| Swing over gap | 890 mm | 990 mm | 1060 mm |
| Width of gap | 450 mm | ||
| Width of bed | 460 mm (18”) | ||
| Distance between centers | 1500 (60”), 2000 (80”), 3000 (120”), 4000 (160”), 5000 (200”) | ||
| Spindle bore | Ø104 mm (4”) / Ø156 mm (6”) / Ø230 mm (9”) | ||
| Spindle nose | A2-11, D1-11 (4” or 6”) / A2-15 (9”) | ||
| Spindle speeds (12 Steps) | 15-1000/ 13-800 /10-600 rpm | ||
| Tailstock quill diameter | Ø95 mm | ||
| Taper of center | MT#5 | ||
| Quill travel | 230 mm | ||
| Tool size | 25 x 25 mm | ||
| Compound rest travel | 230 mm | ||
| Cross slide travel | 385 mm | 435 mm | |
| Cross feeds | 0.025-0.35 mm (36 Kinds) | ||
| Longitudinal feeds | 0.05-0.7 mm (36 Kinds) | ||
| Lead screw diameter | Ø45 mm | ||
| Lead screw pitch | 2TPI (inch) or 12mm (metric) | ||
| Threading range, metric | 0.8-14 mm / Pitch (65 Kinds) | ||
| Threading range, inch | 2-28 TPI (36 Kinds) | ||
| Module pitch threads | 0.5-7 M (22 Kinds) | ||
| DP. pitch threads | 4-56 P (36 Kinds) | ||
| Main spindle motor | 20 HP(Opt.in 18” Bed series) | ||
| Coolant pump | 1/8 HP | ||
| 18”STANDARD ACCESSORIES | 18”OPTIONAL ACCESSORIES |
|---|---|
| Main Motor | 3-Jaw Chuck |
| Auto Lubrication System | 4-Jaw Chuck |
| Coolant System | Face Plate |
| 4-Way Tool Post | Double Chuck System |
| Leveling Bolts & Pads | Steady Rest |
| Main Spindle Sleeve | Follow Rest |
| Main Spindle Center | Rear Tool Post |
| Tailstock Center | Micro Bed Stopper |
| Meter / Inch Community Gear Box | Taper Attachment |
| Tool Box with Tools | Quick Change Tool Post |
| Independent Electrical Box | Digital Readout |
| Operation & Service Manual | Rotary Center |
| Work Light | Electrical System for CE |
| Splash guard |
