4 Guide-way Giant Lathe (52” Bed)
Thursday 27 March 2025
Supplier Information
MYDAY
Visit Website
Detailed Specification

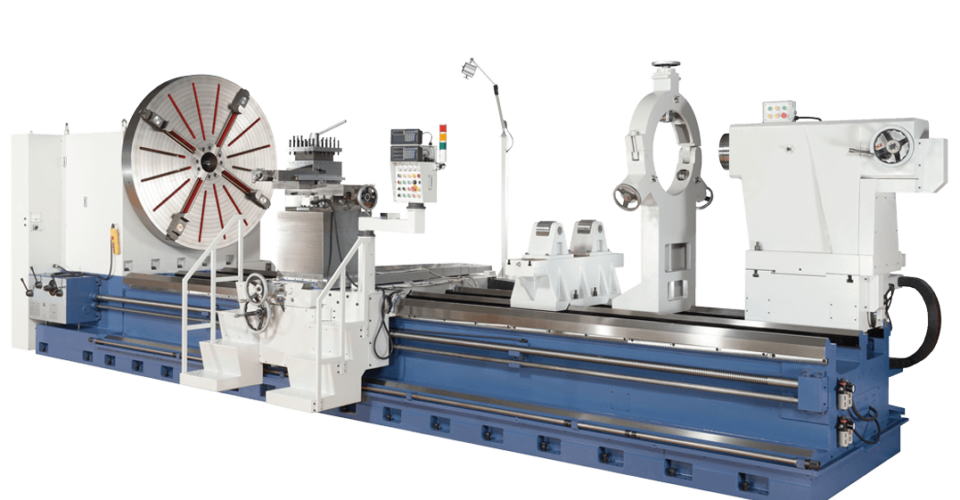

4 Guide-way Giant Lathe is a special type of flat bed lathe. It has one wide bed and 2 pairs of guide ways. Its tailstock and steady rests are placed on the pair of guide ways at the rear side. Thus, we would build the carriage across the 4 guide ways (called full length cross slide) as standard model; this model could stand for very heavy duty machining and has full cross slide travel. Besides, we could build its carriage on one pair of guide way at the front side (called half length cross slide). In this option, the carriage wouldn’t interfere with steady rests and its tailstock; it’s very good at outer diameter machining at one time without removing steady rests.
| Description \ Model | MGF1800 | MGF2000 | MGF2250 | MGF2500 | |
|---|---|---|---|---|---|
| Center height | 900mm | 1000mm | 1125mm | 1250mm | |
| Swing over bed | 1800mm (70.8”) | 2000mm (78.7”) | 2250mm (88.6”) | 2500mm (98.4”) | |
| Swing over cross slide | 1350mm | 1550mm | 1800mm | 2050mm | |
| Full Length (Std.) | |||||
| Swing over cross slide | 1440mm | 1630mm | 1870mm | 2110mm | |
| Half Length (Opt.) | |||||
| Width of bed | 1345 mm (52.9”) (1575mm with auxiliary guideway) | ||||
| Distance between centers | 3000mm~15000 mm | ||||
| Spindle nose / bore | A2-15 / Ø210mm (8”) or A2-20 / Ø260mm (10”) | ||||
| Spindle speed (4 Steps) | 6 ~400 rpm (Chucks are excluded) | ||||
| Tailstock quill diameter | Rotary Quill Ø290 (Std.) or Ø350 (Opt.) | ||||
| Taper of center | MT#7 | ||||
| Quill travel | 300 mm | ||||
| Cross feeds | 0.065 ~ 0.96 ( 48 kinds ) | ||||
| Cross travel | 1250 mm (Full Length) or 510mm (Half Length) | ||||
| Longitudinal feeds | 0.13 ~ 1.92 ( 48 kinds ) | ||||
| Compound rest travel | X1: 250mm / Z1: 350mm (Auto Feeding) | ||||
| Tool size | 50 X 50 mm | ||||
| Lead screw diameter | Ø60mm | ||||
| Lead screw pitch | 2TPI (inch) or 12mm (metric) | ||||
| Threading range, metric | 2 ~ 30 mm / Pitch ( 48 Kinds ) | ||||
| Threading range, inch | 1 ~ 15 TPI ( 48 Kinds ) | ||||
| Module pitch threads | 1 ~ 15 M ( 32 Kinds ) | ||||
| DP. pitch threads | 2 ~ 30 P ( 48 Kinds ) | ||||
| Main spindle motor | 75 HP (Std.) or 100 HP (Opt.) | ||||
| Rapid motor | 2 HP | ||||
| Coolant pump | 1 HP | ||||
| Lubrication pump | 12 W | ||||
| 52” STANDARD ACCESSORIES | 52” OPTIONAL ACCESSORIES |
|---|---|
| Main Motor with Inverter | 3-Jaw Chuck |
| Hydraulic Spindle Disk Brake | 4-Jaw Chuck |
| Auto Lubrication System | 4-Jaw Face Plate |
| Coolant System | Steady Rest |
| 4-way Tool Post | Heavy Duty Steady Rest |
| Leveling Bolts & Pads | Boring Device (only for Full-length Cross-slide) |
| 6-way Rapid Traverse | Digital readout |
| Metric / Inch Community Gear Box | |
| Tailstock Dead Center | |
| Tailstock Rotary Quill Ø290mm | |
| Motorized Tailstock | |
| Tool Box with Tools | |
| Operation & Service Manual |
