Detailed Specification

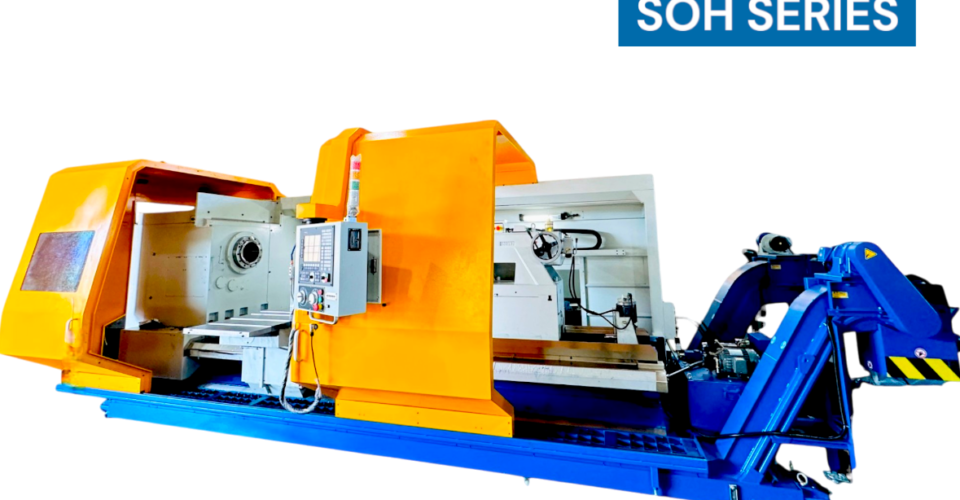

CNC Heavy Duty Oil Country Lathe is a famous product line for oil & gas fielding and metal industry. It could be big bore lathe of double chucks at both sides of the headstock, or it could have large swing for big workpiece. It could be applied to oil pipes, big steel rollers, large diameter flanges, long shafts of ships, etc. Besides, for better workpiece clamping, we have rotary quill option on tailstocks.
Description \ Model SOH1200 SOH1400 SOH1600 Swing over bed 1190 mm 1385 mm 1580 mm Swing over cross slide 740 mm 940 mm 1140 mm Bed width 800mm (32”) (1000mm with auxiliary guideway) Distance between centers 2000~10000mm (80”~400”) (bed casted in one piece) Spindle bore Ø156mm (6”) / Ø230mm (9”) / Ø260mm (10”) / Ø310mm (12”) / Ø360mm (14”) / Ø535mm (21”) Spindle nose A2-15 (6”) / A2-15 (9”) / A2-15 (10”) / A2-20 (12”) / A2-20 (14”) / A2-28 (21”) Spindle speeds (4 Steps) 6-800 / 4-600 / 4-600 / 3-400 / 3-400 / 2-300 rpm (Chucks are NOT Considered) Spindle motor S1: 30KW (37KW opt.) Axes Transmission X: Ø50 ball screw Z-axis : Ø80 ball screw (DBC≤5M); Rack and Pinion (DBC≥6M) Rapid Travers X-axis : 5 m/min , Z-axis : 5 m/min Max, x-axis travel 800mm Max, z-axis travel 1750~14750 mm Tailstock spindle travel/Quill 300mm / Ø200 (Std.) or Ø290 Rotary Quill (Opt.) Tailstock spindle taper MT#7 Controller FAGOR 8055i FANUC 0i-TF SIEMENS 828D X-axis servo motor FKM 66 α22i 1FK7101 Servo motor output ※ 4.9 KW 4.0 KW 4.29 KW Z-axis servo motor FKM 66 α22i 1FK7103 Servo motor output ※ 4.9 KW 4.0 KW 4.87 KW Coolant pump motor 0.7KW (50Hz) / 1KW (60Hz) ※ THE SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
32”STANDARD ACCESSORIES 32”OPTIONAL ACCESSORIES CNC controller: FANUC, FAGOR or SIEMENS 3-Jaw Chuck AC spindle motor (22KW) 4-Jaw Chuck Auto lubrication system Face Plate Coolant system Hydraulic Chuck Spindle oil chiller Pneumatic Chuck Electric cabinet air conditioner Double Chuck System 2-door type splash guard Steady Rest Chip conveyor Follow Rest Work light Heavy Duty Steady Rest (2-point type) Spindle sleeve and dead center (for spindle bore ≦ 9″) Hydraulic or Electric Milling Device Tailstock center Hydraulic Spindle Orientation (5 degree resolution) Leveling bolts & pads Boring Device Tool box with oiler, spare fuse, paint & tools Hydraulic 4-way Tool Post Operation & service manual Hydraulic V8 Turret Hydraulic V12 Turret (for TNC-1200 and above) Hydraulic Tailstock C-axis Control Power Turret Full Guarding
